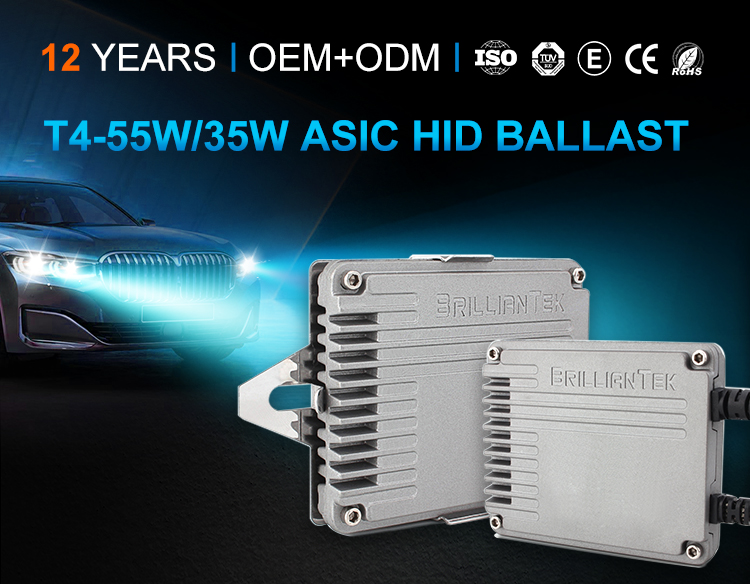

BT-AUTO T4 HID Ballast Fast Start ASIC Super CANBUS Ballast 35W 55W Auto Headlight HID Conversion Xenon Kit

Short Description:

We supply BT-AUTO T4 HID Ballast Fast Start ASIC Super CANBUS Ballast 35W 55W Auto Headlight HID Conversion Xenon Kit.

We have been specializing in car LED lighting and HID products markets for years. We are looking forward to become your good long-term partner in China.

P-out(total): 35W / 55W

P-out(effective): 35W / 42W

V-in: DC 9- 16V

I-start(13.5V): max 5.5A (CANBUS T4-C3, T4-C5), max 7.5A(Fast start T4-F3, T4-F5)


Product Detail

Type HID
Main chip ASIC
PCB 4layers
P-out(total) 35W / 55W
P-out(effective) 35W / 42W
V-in DC 9-16V
V-out AC 85±17V
V-start 23000±3000V
I-start(13.5V) max 5.5A (CANBUS T4-C3, T4-C5), max 7.5A(Fast start T4-F3, T4-F5)
I-op(13.5V) 3.1A/35W, 4.2A/55W
T-op -45℃~+85℃
T-aging -65℃~+70℃(≥80℃/other suppliers
CANBUS strong & full range
Frequency ±300Hz(≥250Hz/other suppliers)
Time-steady ≤10s
Efficiency ≥85%
Defective rate < 0.5%
Warranty 24 months
Car make universal
Life span 3000+hrs
Size 88*71*12mm
Cover material Aluminum alloy
EMC/EMI S95/54/EC
Certificate CE, RoHS
E-Mark E13 10R-05 13950
Patent No. 201630277465.1

Model:

T4-CANBUS: T4-C3-35W, T4-C5-55W; T4-Fast start: T4-F3-35W, T4-F5-55W.



ASIC main chip:

ASIC: application specific integrated circuit; High integrated, more efficient and stable; Low voltage start: V-start of chip: 7-7.3V, ballast starts at 8.5V; High frequency ±300Hz(≥250Hz/other ballasts); FSW(frequency switch)=150KHz, combining canbus and fast bright perfectly; Pass flashing test(max 4 times/second), no flicker or off.



Solid state PCB:

4 layers PCB, better circuit layout; Only 70+pcs SMD components; Simple, efficient and low defective rate.



Super CANBUS decoder:

20000+1000uF capacitor; High level solution; Pass BMW E-series,F-series, Mini; Pass BENZ C200; Pass VW Tiguan, Sagitar, Lavida; Pass AUDI A-series; Pass BUICK-Envision; Pass JEEP-Campass; Pass FORD-Focus; Pass KIA-K3; Pass DODGE, etc



EMC:

Low impilse: Low impulse current wave, stable current; EMC wire cable: Copper+PET packing input & output wires for shielding electromagnetic interference; Solving radio/audio/electronic devices interference problem.



Ground wire:

Separated ground wire connects the bracket to ground for safety; Avoiding the leakage of electricity; Enhancing the EMC function.



Strong start voltage:

23000±3000V high voltage produced by ignition coil; Fast full bright and strong lighting up; Good components for long life span and more brightness.



Strong light up:

Lighting up old/cheap bulbs(V-op >140V, new/good bulbs are 85V±17V) at one time; 35W/42W constant P-out(effective).



Constant power output:

Precisely constant power output by checking the current and voltage of loaded bulbs; Tolerance is ±0.2W.



Stable current:

I-start: max 5.5A@13.5V/T4-C3/C5, max 7.5A@13.5V/T4-F3/F5; I-op: 3.1A/4.2A@13.5V; Time-steady: ≤10s.



Low start impulse:

Current 54.4A/2.50ms(60A+/other ballasts); Lighting up stable, no flicker.



Ultra thin:

9mm height of components; 12mm height of ballast; More efficient heat dissipation; Easy installation.



Unique mounting bracket:

Push & stick, easy installation; Cross-ventilation cooling; Top quality 3M sticker on back.

T4 Full hid conversion kit: 2pcs ballast + 1pair(2pcs) hid xenon bulb + 2pcs wire cable + 1 pc kit box

Dimension: 88 * 71 * 12 mm



Package:

Hard box: 130*108*55mm; Customized is accepted

20200619-T4 (2) 20200619-T4 (3) 20200619-T4 (4) 20200619-T4 (5) 20200619-T4 (6) 20200619-T4 (7) 20200619-T4 (8) 20200619-T4 (9) 20200619-T4 (10) 20200619-T4 (11) 20200619-T4 (12) 20200619-T4 (13) 20200619-T4 (14) 20200619-T4 (15) 20200619-T4 (16) 20200619-T4 (17) 20200619-T4 (18)
