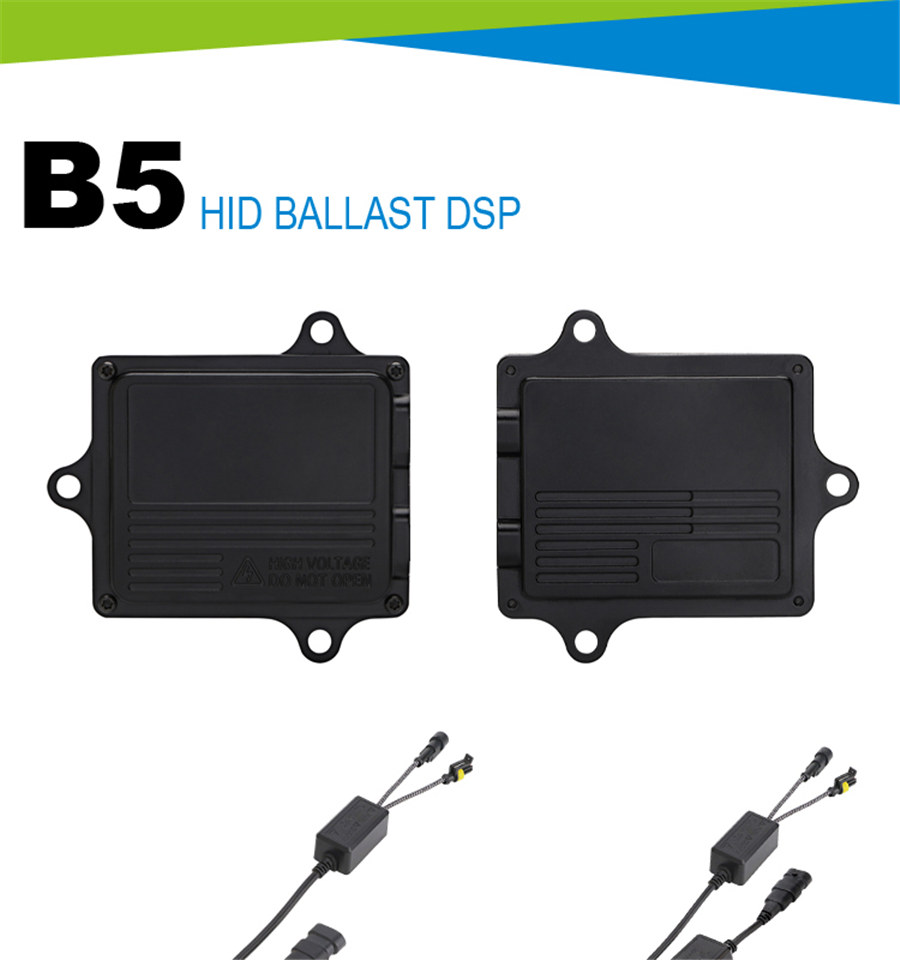

BT-AUTO B5 Hid Xenon Ballast Stable Power DSP Chip Slim HID 35w 55w Ballast HID Xenon Conversion Kit

Short Description:

We supply BT-AUTO B5 Hid Xenon Ballast Stable Power DSP Chip Slim HID 35w 55w Ballast HID Xenon Conversion Kit.

We are professionally engaged in car LED lighting, auto LED headlight, LED bulbs and HID, etc. We are expecting to become your good long-term partner in China.

P-out(total): 35W / 55W

P-out(effective): 35W / 45W

V-in: DC 9- 32V / DC 9-16V(with CANBUS)

I-start(12V): 5.5A/35W, 6.0A/55W


Product Detail

Type HID
Main chip DSP
PCB 4layers
P-out(total) 35W / 55W
P-out(effective) 35W / 45W
V-in DC 9- 32V / DC 9-16V(with CANBUS)
V-out AC 85±17V
V-start 23000±3000V
I-start(12V) 5.5A/35W, 6.0A/55W
I-op(12V) 3.2A/35W, 4.3A/55W, 3.6A/35W(with CANBUS), 4.8A/55W(with CANBUS)
T-op -45℃~+85℃
CANBUS: Strong & full range
Time-steady ≤10s
Efficiency ≥85%
Defective rate < 0.5%
Warranty 18 months
Car make universal
Life span 3000+hrs
Size 88.5*74.3*17.5mm
Cover material Aluminum alloy
EMC/EMI S95/54/EC
Certificate CE, RoHS

Model:

B5 CANBUS ballast: B5-C3-35W, B5-C5-55W; B5 Standard ballast: B5-S3-35W, B5-S5-55W.

DSP main chip:

DSP: Digital signal processing; High integrated, more efficient and stable.

Multi layers PCB:

4 layers PCB, better circuit layout;Efficient and low defective rate.

Super CANBUS Decoder:

22000+3000uF capacitor; High level solution; Good CANBUS performance; Pass most cars in the market.

EMC:

Low impulse current wave; Stable current.

Strong start voltage:

23000±3000V high voltage produced by ignition coil(±17000V/other ballasts); Fast full bright and strong lighting up; Good components for long life span and more brightness.

Full power output:

35W ballast: P-op: 35W; 55W ballast: P-op: 50W.

Constant Power Output:

Precisely constant power output by checking the current and voltage of loaded bulbs; Tolerance is ± 1W.

HID Kit:

B5 ballast + single bulb; B5 ballast + hi / low bulb

CAN connect HID xenon bulb H1, H3, H4-3, H7, H8, H9, H11, H13-3, 9005, 9006, 9004-3, 9007-3 directly; CAN connect xenon bulb D1, D2, D3, D4, D5, D8 with extra transfer connector/wire; HID xenon bulb: DC/AC, 35W/55W, super bright version /normal, 3000k, 4300k, 5500k, 6000k, 8000k, etc; 3500-3800 LUMEN for HID xenon bulb.

B5 Full hid conversion kit: 2pcs ballast + 1pair(2pcs) hid xenon bulb + 2pcs wire cable + 1 pc kit box

Dimension: 88.5 * 74.3 * 17.5mm.

Customized package is accepted.

20200619-B5 (1) 20200619-B5 (2) 20200619-B5 (3) 20200619-B5 (4) 20200619-B5 (5) 20200619-B5 (6) 20200619-B5 (7) 20200619-B5 (8) 20200619-B5 (9) 20200619-B5 (10) 20200619-B5 (11) 20200619-B5 (12)
