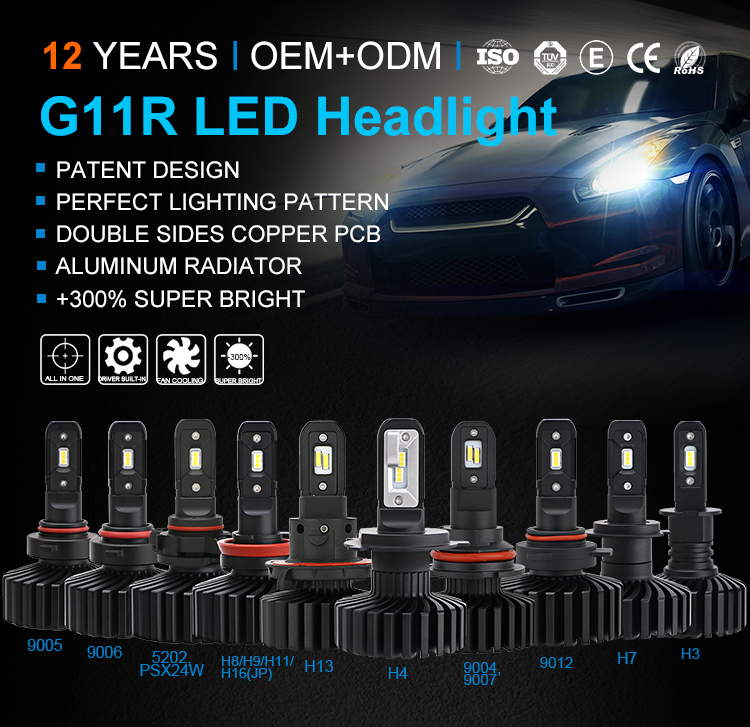

BT-AUTO G11R Fanless LED Headlight H4 H7 H11 AUTO Headlight OEM ODM Car Headlight Bulb Supplier

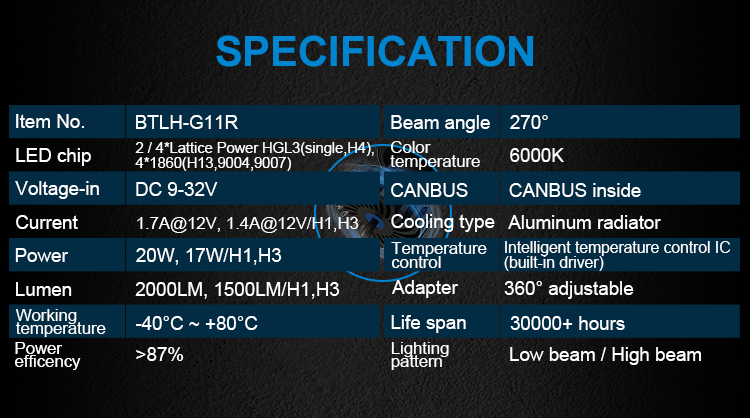

| LED chips | 2 / 4* Lattice power HGL3(single, H4), 4*1860(H13,9004,9007) |
| Voltage-in | DC 9-32V |
| Current-start | 1.7A@12V, 1.4A@12V/H1,H3 |
| Power | 20W, 17W/H1,H3 |
| Lumen | 2000LM, 1500LM/H1,H3 |
| Working temperature | -40℃～+80℃ |
| Power efficiency | >87% |
| Beam angle | 270° |
| Color temperature | 6000K |
| CANBUS | CANBUS inside |
| Cooling type | Aluminum radiator |
| Adapter | 360°adjustable |
| Life span | 30000+ hours |
| Warranty | 18 months |
| Lighting pattern | Low beam / High beam |
G11R LED Headlight Features:

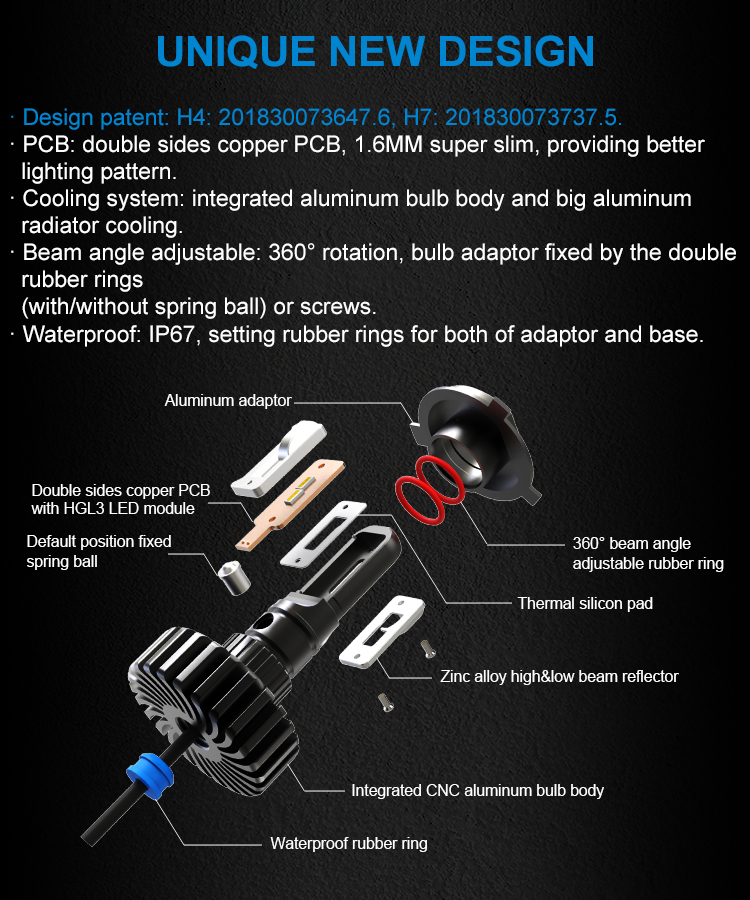

Unique new design:
Design patent: H4: 201830073647.6, H7: 201830073737.5,
PCB: double sides copper PCB, 1.6MM super slim, providing better lighting pattern,
Cooling system: integrated aluminum bulb body and big aluminum radiator cooling,
Beam angle adjustable: 360°rotation, bulb adaptor fixed by the double rubber rings(with/without spring ball) or screws,
Waterproof: IP67, setting rubber rings for both of adaptor and base.

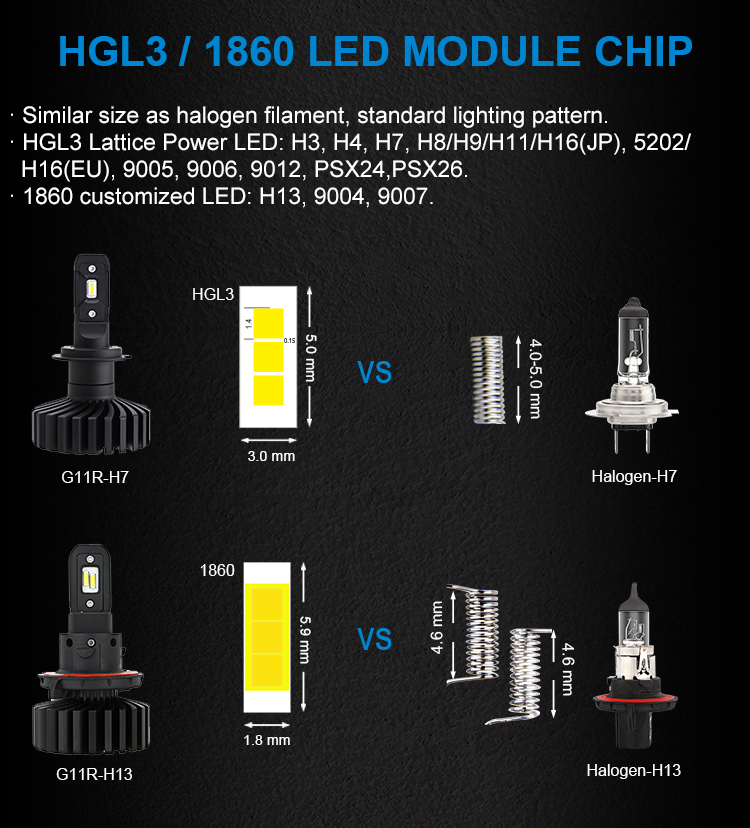

HGL3 / 1860 customized LED module chip:
Similar size as halogen filament, standard lighting pattern,
HGL3 Lattice Power LED: H3, H4, H7, H8/H9/H11/H16(JP), 5202/H16(EU), 9005, 9006, 9012, PSX24, PSX26,
1860 customized LED: H13, 9004, 9007.

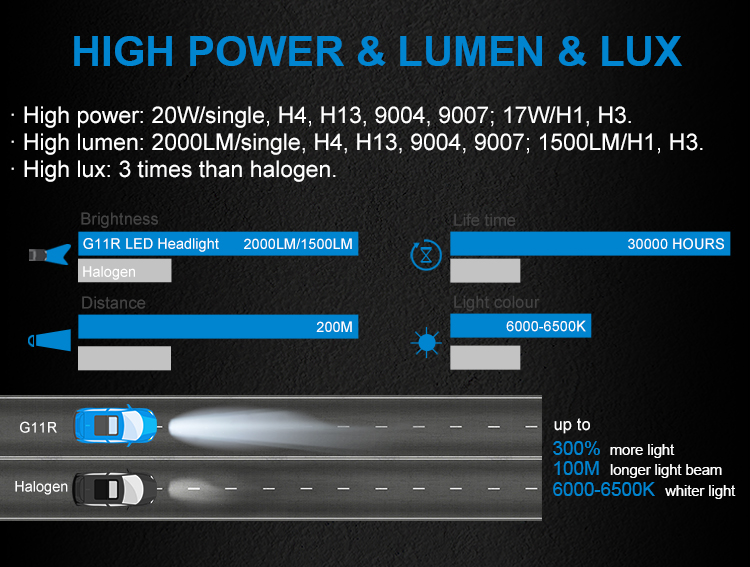

High Power & Lumen & LUX:
High power: 20W/single,H4, 17W/H1,H3; High lumen: 2000LM/single,H4, 1500LM/H1,H3,
High lux: 3 times than halogen.
Good Lighting Pattern:
Double sides copper PCB, 1.6MM super slim, providing better lighting pattern; HGL3 LED module chip is same size as the halogen’s filament; Original 15° cutting line for low beam, without glaring; Wider and 3 times brighter than halogen; Pass Japan vehicle lighting test.
G11R LED Headlight is mainly for reflector headlight kit

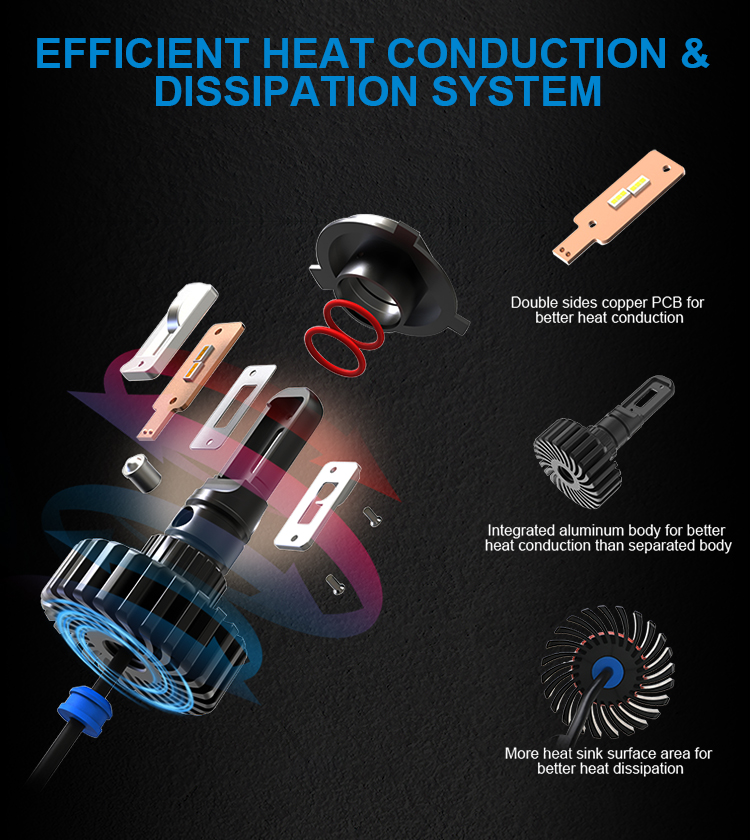

Efficient heat conduction & dissipation system:
Double sides copper PCB for better heat conduction than aluminum; Integrated aluminum body for better heat conduction than separated body; Big aluminum radiator with more heat sink surface area for better heat dissipation.

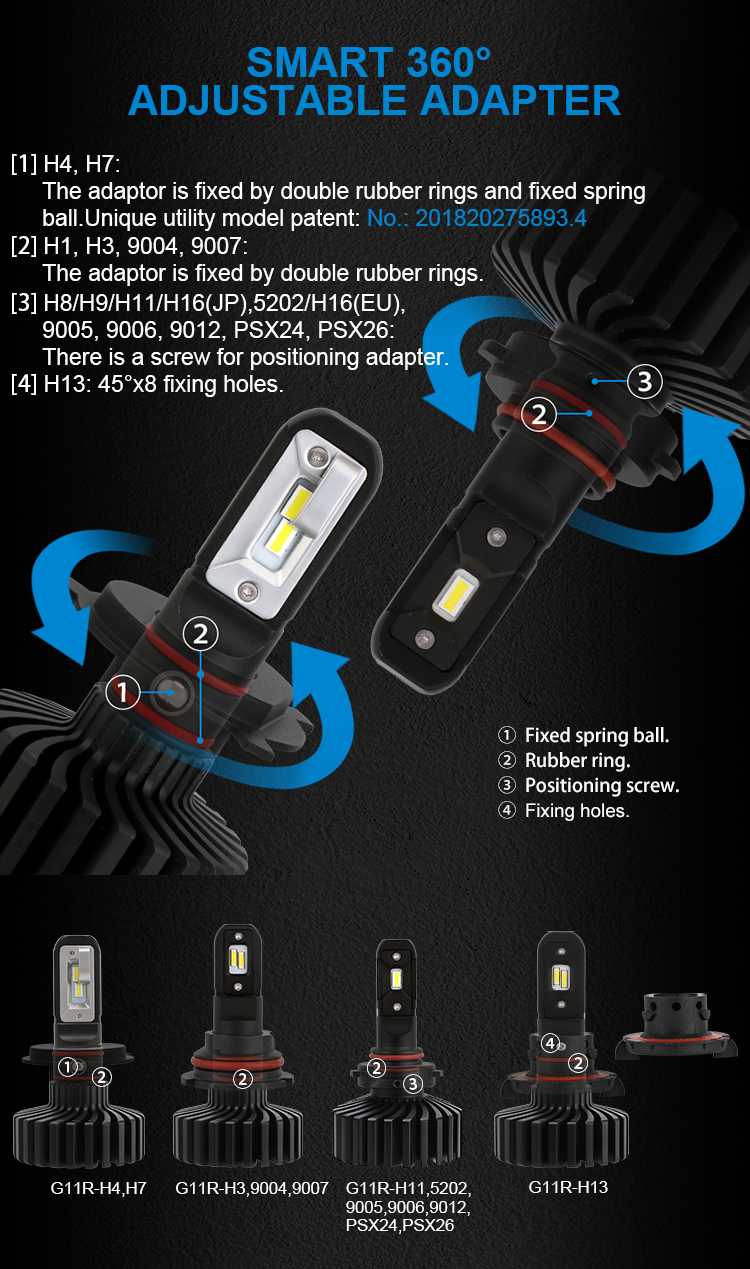

Smart 360°adjustable adapter:
H4, H7: the adapter is fixed by double rubber rings and fixed spring ball, utility model patent(No.:201820275893.4),
H3, 9004, 9007: the adapter is fixed by double rubber rings,
H8/H9/H11/H16(JP), 5202/H16(EU), 9005, 9006, 9012, PSX24, PSX26: there is a screw for positioning adapter,
H13: 45°* 8 fixing holes.

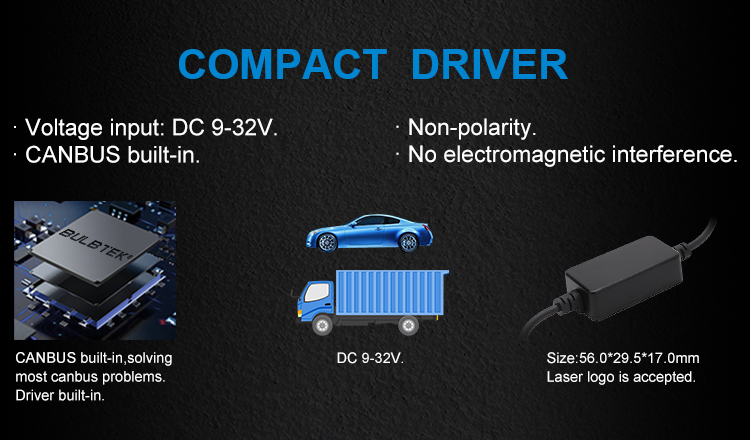

Small driver:
Voltage input: DC 9-32V; CANBUS built-in; Non-polarity; No electromagnetic interference; Die-cast aluminum cover for better protection, heat conduction and dissipation; Size: 56.0*29.5*17.0mm; Laser logo is accepted.

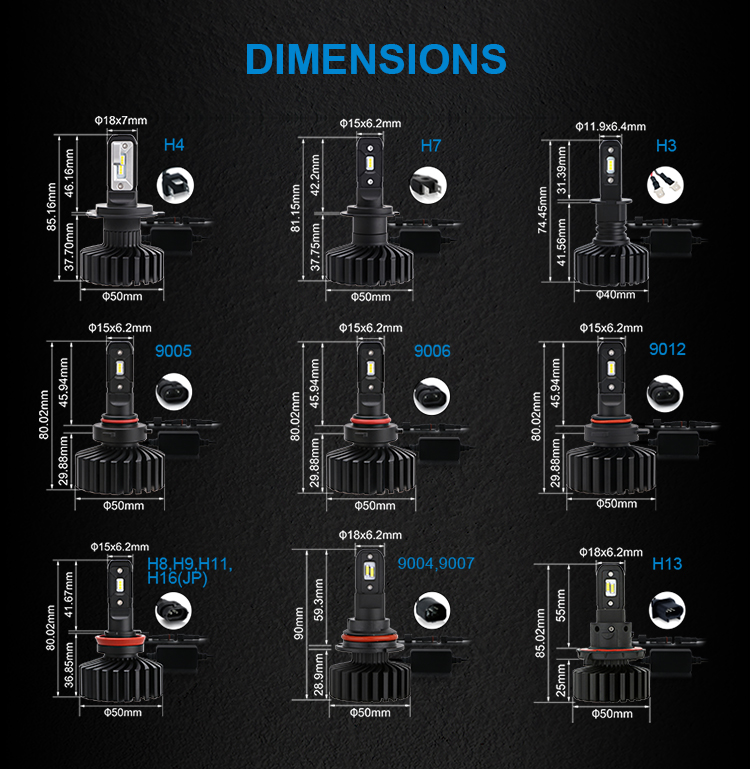

Small base/size:
H4: diameter φ50mm, height 37.7mm; H7: diameter φ50mm, height 37.8mm,
H11: diameter φ50mm, height 36.9mm; 9005: diameter φ50mm, height 29.9 mm.

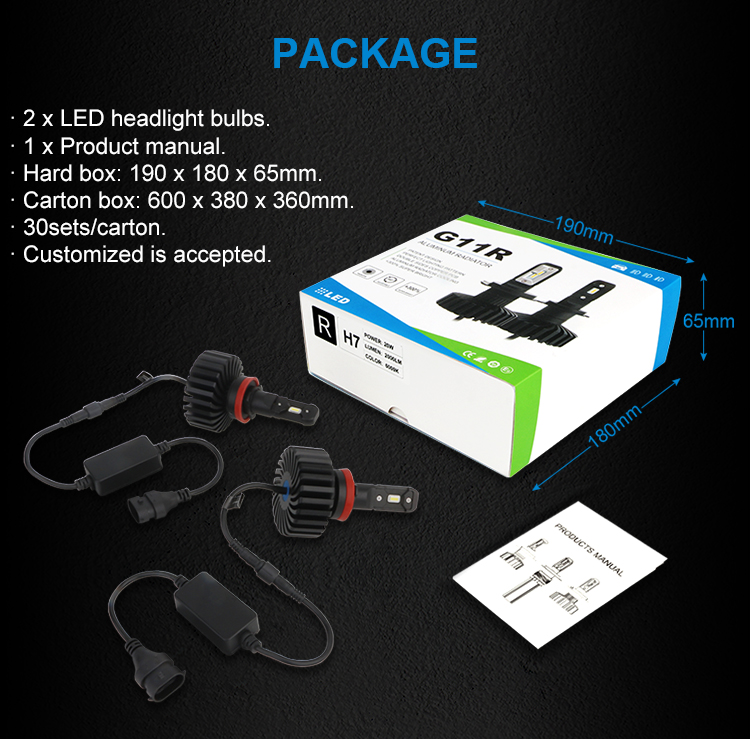

Package:
Soft box: 190*180*65mm, 2pcs/set; Carton box: 41*38*37 cm, 20sets/carton; Customized is accepted.
Welcome OEM and ODM for all BT-AUTO LED Headlight.
