BULBTEK G11F Super Bright LED Headlight Bulb H1 H3 H4 H7 H11 9005 OEM ODM Car Headlight Bulb Manufacturer

Short Description:

We sell BULBTEK G11F Super Bright LED Headlight Bulb H1 H3 H4 H7 H11 9005 OEM ODM Car Headlight Bulb.

We are specialized in AUTO LED headlight and car LED bulb for many years.

Welcome OEM and ODM.

Available models: H1, H3, H4, H7, H8/H9/H11/H16(JP), H13, 5202/H16(EU), 9004, 9005, 9006, 9007, 9012, PSX24, PSX26

Voltage-in: DC 9-32V

Power: 30W, 17W/H1,H3

Lumen: 2500LM, 1500LM/H1,H3


  • :
  • Product Detail

    LED chips 2 / 4* Lattice power HGL3(single, H4), 4*1860(H13,9004,9007)
    Voltage-in DC 9-32V
    Current-start 2.3A@12V, 1.4A@12V/H1,H3
    Power 30W, 17W/H1,H3
    Lumen 2500LM, 1500LM/H1,H3
    Working temperature -40℃~+80℃
    Power efficiency >87%
    Beam angle 270°
    Color temperature 6000K
    CANBUS CANBUS inside
    Cooling type Fan
    Adapter 360°adjustable
    Life span 30000+ hours
    Warranty 18 months
    Lighting pattern Low beam / High beam

    G11F LED Headlight Features:

    Unique new design:

    Design patent: H4: 201830074891.4, H7: 201830073737.X,

    PCB: double sides copper PCB, 1.6MM super slim, providing better lighting pattern,

    Cooling system: integrated aluminum bulb body and dual ball bearing fan cooling,

    Beam angle adjustable: 360°rotation, bulb adaptor fixed by the double rubber rings(with/without spring ball) or screws,

    Waterproof: IP67, setting rubber rings for both of adaptor and base.



    HGL3 / 1860 customized LED module chip:

    Similar size as halogen filament, standard lighting pattern,

    HGL3 Lattice Power LED: H1, H3, H4, H7, H8/H9/H11/H16(JP), 5202/H16(EU), 9005, 9006, 9012, PSX24, PSX26,

    1860 customized LED: H13, 9004, 9007.



    High Power & Lumen & LUX:

    High power: 30W/single,H4, 17W/H1,H3; High lumen: 2500LM/single,H4, 1500LM/H1,H3,

    High lux: 4 times than halogen.

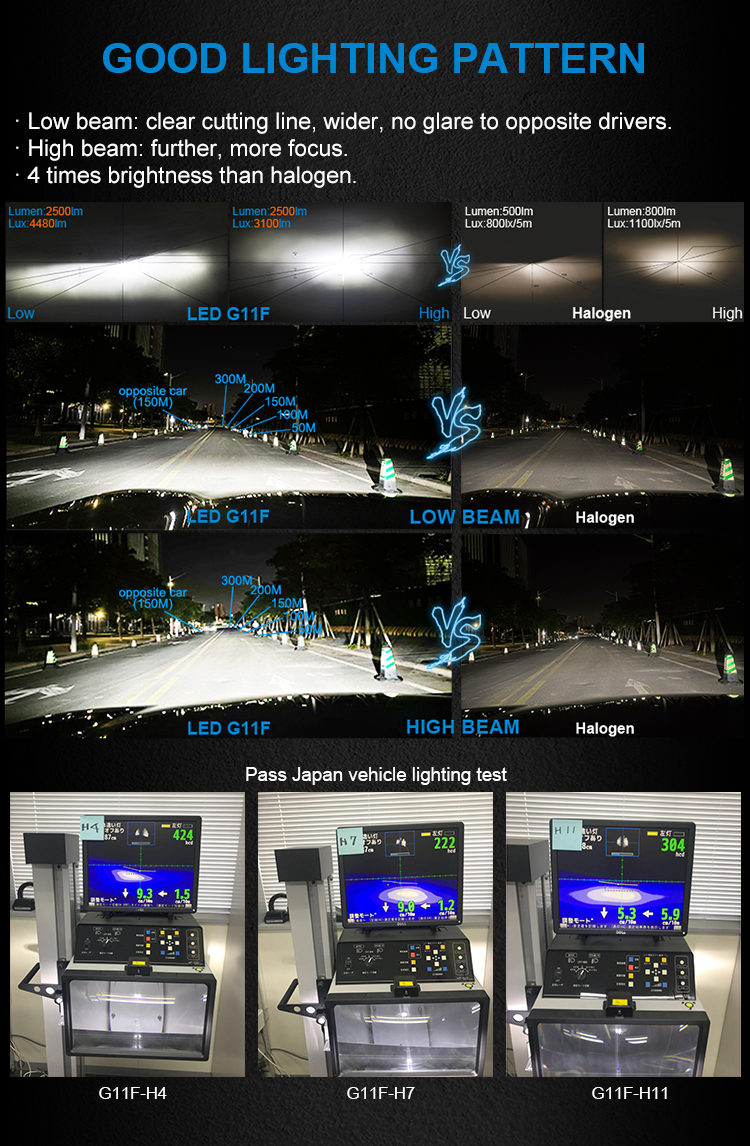

    Good Lighting Pattern:

    Double sides copper PCB, 1.6MM super slim, providing better lighting pattern; HGL3 LED module chip is same size as the halogen’s filament; Original 15° cutting line for low beam, without glaring; Wider and 3 times brighter than halogen; Pass Japan vehicle lighting test.

    G11F LED Headlight bulb is mainly for Reflector headlight kit.



    Efficient heat conduction & dissipation system:

    Double sides copper PCB for better heat conduction than aluminum; Integrated aluminum body for better heat conduction than separated body; Dual ball bearing fan, efficient, stable and long life span; More heat sink surface area for better beat dissipation.



    Smart 360°adjustable adapter:

    H4, H7: the adapter is fixed by double rubber rings and fixed spring ball, utility model patent(No.:201820275893.4),

    H1, H3, 9004, 9007: the adapter is fixed by double rubber rings,

    H8/H9/H11/H16(JP), 5202/H16(EU), 9005, 9006, 9012, PSX24, PSX26: there is a screw for positioning adapter,

    H13: 45°* 8 fixing holes.



    Small driver:

    Voltage input: DC 9-32V; CANBUS built-in; Non-polarity; No electromagnetic interference; Die-cast aluminum cover for better protection, heat conduction and dissipation; Size: 56.0*29.5*17.0mm; Laser logo is accepted.



    Small base/size:

    H4: diameter φ42mm, height 37.7mm; H7: diameter φ42mm, height 36.7mm,

    H11: diameter φ42mm, height 34.4mm; 9005: diameter φ42mm, height 27.5 mm.



    Package:

    Soft box: 190*180*65mm, 2pcs/set; Carton box: 41*38*37 cm, 20sets/carton; Customized is accepted.

    Welcome OEM and ODM for all BT-AUTO LED Headlight.

    20200426-G11F (1) 20200426-G11F (2) 20200426-G11F (3) 20200426-G11F (4) 20200426-G11F (5) 20200426-G11F (6) 20200426-G11F (7) 20200426-G11F (8) 20200426-G11F (9) 20200426-G11F (10) 20200426-G11F (11) 20200426-G11F (12) 20200426-G11F (13) 20200426-G11F (14) 20200426-G11F (15)
