BT-AUTO G11B Fanless Universal LED Headlight Bulb 18 Months Warranty Wholesale CANBUS LED Bulb Car Headlamp

Short Description:

We supply BT-AUTO G11B Fanless Universal LED Headlight Bulb 18 Months Warranty Wholesale CANBUS LED Bulb Car Headlamp.

We are specialized in AUTO LED Headlight, car LED bulb and HID for years.

Welcome OED and ODM.

Available models: H1, H3, H4, H7, H8/H9/H11/H16(JP), H13, 5202/H16(EU), 9004, 9005, 9006, 9007, 9012, PSX24, PSX26, D2S

Voltage-in: DC 9-32V

Power: 20W, 17W/H1,H3

Lumen: 2000LM, 1500LM/H1,H3




Product Detail

LED chips 2 / 4* Lattice power HGL3(single, H4), 4*1860(H13,9004,9007)
Voltage-in DC 9-32V
Current-start 1.7A@12V, 1.4A@12V/H1,H3
Power 20W, 17W/H1,H3
Lumen 2000LM, 1500LM/H1,H3
Working temperature -40℃~+80℃
Power efficiency >87%
Beam angle 270°
Color temperature 6000K
CANBUS CANBUS inside
Cooling type Copper belt
Adapter 360°adjustable
Life span 30000+ hours
Warranty 18 months
Lighting pattern Low beam / High beam

G11B LED Headlight features:

Unique new design:

Design patent: H4: 201830074892.9, H7: 201830073648.0,

Utility model patent: 201820275895.3, aluminum bulb body cover, for tighter, better protection, appearance and heat conduction,

PCB: double sides copper PCB, 1.6MM super slim, providing better lighting pattern,

Cooling system: integrated aluminum bulb body and copper belt,

Beam angle adjustable: 360°rotation, bulb adaptor fixed by the double rubber rings(with/without spring ball) or screws,

Waterproof: IP67, setting rubber rings for both of adaptor and base.



HGL3 / 1860 customized LED module chip:

Similar size as halogen filament, standard lighting pattern,

HGL3 Lattice Power LED: H1, H3, H4, H7, H8/H9/H11/H16(JP), 5202/H16(EU), 9005, 9006, 9012, PSX24, PSX26, D2S.

1860 customized LED: H13, 9004, 9007.



High Power & Lumen & LUX:

High power: 20W/single,H4, 17W/H1,H3; High lumen: 2000LM/single,H4, 1500LM/H1,H3;

High lux: 3 times than halogen.

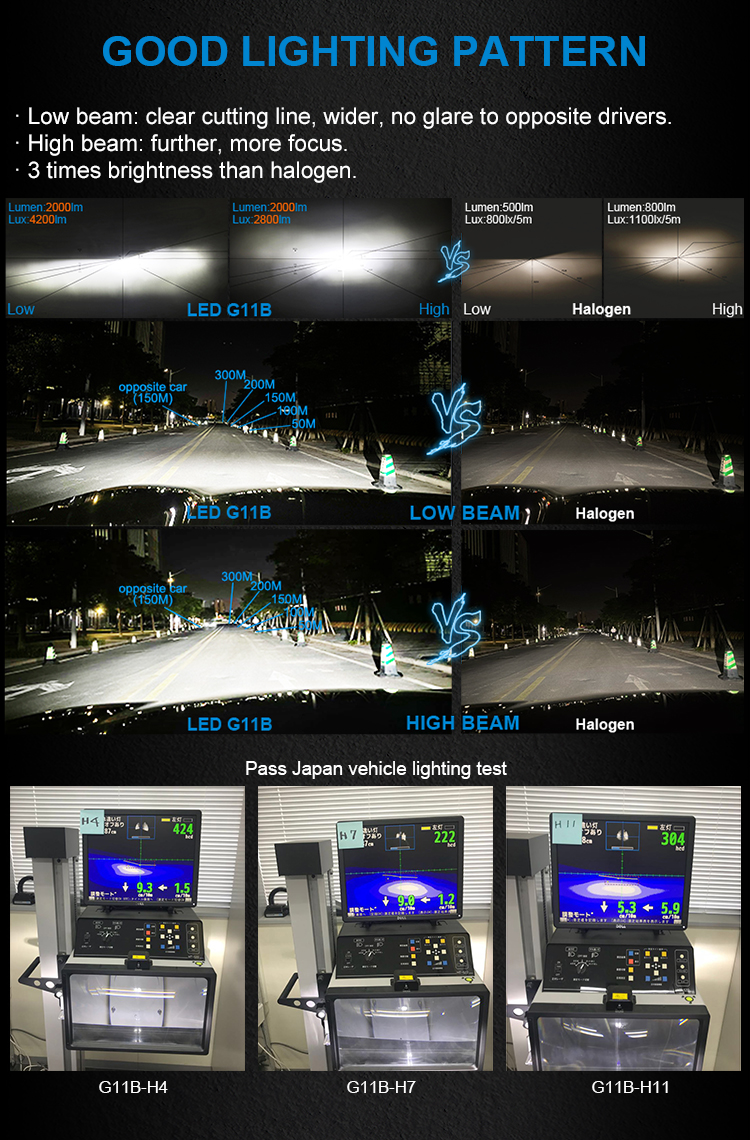

Good Lighting Pattern:

Double sides copper PCB, 1.6MM super slim, providing better lighting pattern; HGL3 LED module chip is same size as the halogen’s filament; Original 15° cutting line for low beam, without glaring; Wider and 3 times brighter than halogen; Pass Japan vehicle lighting test.

G11B LED Headlight bulb is mainly for reflector headlight kit.



Efficient heat conduction & dissipation system:

Double sides copper PCB for better heat conduction than aluminum; Integrated aluminum body for better heat conduction than separated body; 4pcs copper belts for efficient heat conduction and dissipation.



Smart 360°adjustable adapter:

H4, H7: the adapter is fixed by double rubber rings and fixed spring ball, utility model patent(No.:201820275893.4),

H1, H3, D2S, 9004, 9007: the adapter is fixed by double rubber rings,

H8/H9/H11/H16(JP), 5202/H16(EU), 9005, 9006, 9012, PSX24, PSX26: there is a screw for positioning adapter,

H13: 45°* 8 fixing holes.



Small driver:

Voltage input: DC 9-32V; CANBUS built-in; Non-polarity; No electromagnetic interference; Die-cast aluminum cover for better protection, heat conduction and dissipation; Size: 56.0*29.5*17.0mm; Laser logo is accepted.



Small base/size:

H4: diameter φ30mm, height 32mm; H7: diameter φ30mm, height 33.6mm,

H11: diameter φ30mm, height 34.7mm; 9005: diameter φ30mm, height 33.3 mm.



Package:

Soft box: 190*180*65mm, 2pcs/set; Carton box: 41*38*37 cm, 20sets/carton; Customized is accepted.

Welcome OEM and ODM  for all BT-AUTO LED Headlight bulb.
