BT-AUTO 1445 LED Module Car LED Bulb Auto Interior Lights Copper PCB Non-polarity Good Lighting Pattern Auto LED Lamp

Short Description:

We are producing BT-AUTO 1445 LED Module Car LED Bulb Auto Interior Lights Copper PCB Non-polarity Good Lighting Pattern Auto LED Lamp.

We have been specializing in car LED lighting markets for years. We have built constant business relationships with customers from all over the world.

Available models: T15, T20(7440,7443), T25(3157), S25(1156 (BA15S, BAU15S), 1157(BA15D, BAY15D)

Current: T15,1156: 800mA±60mA@13V; 7440: 780mA±60mA@13V; 1157: 820mA±60mA@13V/high beam 130mA±20mA@13V/low beam; 3157, 7443: 840mA±60mA@13V/high beam, 120mA±20mA@13V/low beam

Available color: white, amber, red

Product Detail

Type car LED interior bulb
Current T15,1156: 800mA±60mA@13V

7440: 780mA±60mA@13V

1157: 820mA±60mA@13V/high beam 130mA±20mA@13V/low beam

3157, 7443: 840mA±60mA@13V/high beam, 120mA±20mA@13V/low beam

Power T15, 1156: 10.4W

7440: 10.14W

1157: 10.66 / 1.69W

3157, 7443: 10.92W / 1.56W

Lumen 770lm (single beam), 760lm(high beam) / 170lm (low beam)
Voltage DC 9-18V
Available color white, amber, red
Beam angle 360 degree
Polarity Non-polarity
Warranty 12 months
MOQ 200pcs
Certificate CE, RoHS
Function turning, reversing, braking, DRL

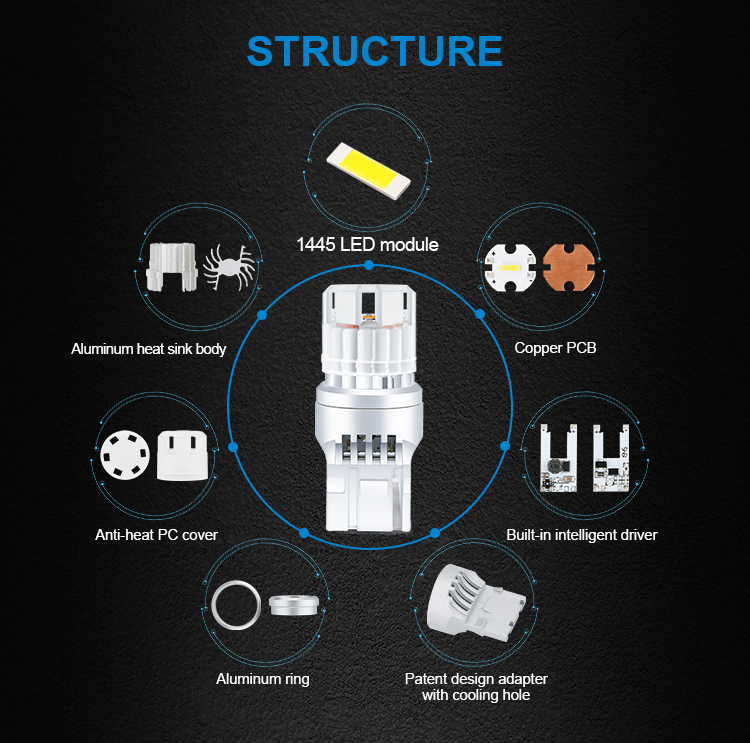

1445 LED module; Aluminum heat sink body; Anti-heat PC cover; Aluminum ring; Patent design adapter with cooling hole; Built-in intelligent driver; Copper PCB.

1445 LED module:

Top quality customized 1445 LED module; 1445: 10W/pc, 100lm/W.

Copper PCB:

Copper PCB for better heat conduction and dissipation than aluminum or glass fiber; Copper PCB for big power.

PC Cover:

Anti-heat, high intensity and damage resistance; Making the lighting 360 degree and smooth.


Stable and efficient; Constant current, non-polarity; High quality SMD components.


Brand new design cooling hole for string CANBUS function; Original adapter, standard and small; High strength, high insulation, anti-corrosion; Wider and stronger polarity pin; PA66+GF15 Plastic material, anti 200℃ high temperature; Plug & play.


Available color: white, amber, red; High lumen: 777LM/white, 531LM/amber, 127LM/red; Beam angle: 360°; Good lighting pattern.


We have integrating sphere tester and other professional testing machines.


easy installing, plug and play, fits for almost all cars; CAN connect an extra resistor If have canbus problem, like error on dash board, fickler, etc.

Warranty: take video of the problem to replace new or refund.


Blister package: elegant, blister is sealed with high frequency plastic welding machine; Box package: supereme, high-end.
