BT-AUTO X7S Fanless LED Headlight Bulb H1 H4 H7 H11 9005 LED Bulb for LENS Projector and Reflector Headlight

Short Description:

We selling BT-AUTO X7S Fanless LED Headlight Bulb H1 H4 H7 H11 9005 LED Bulb for LENS Projector and Reflector Headlight.

We have been specializing in auto LED hadlight,  car led bulb for years.

Welcome OEM and ODM.

Available models: H1, H4, H7, H8/H11/H16(JP), 9005, 9006, 9012, D2/D4

Voltage-in: DC 9-30V

Power: 25W

Lumen: 1800LM/H1, 1400LM(low), 1900LM(high)/H4,2500LM/H7, H8/H9/H11/H16(JP), 9005, 9012, D2/D4


Product Detail

LED chips 2/4 * 5530 /3570 customized LED module
Voltage-in DC 9-30V
Current-start 2.1A@12V
Power 25W
Lumen 1800LM/H1, 1400LM(low), 1900LM(high)/H4,2500LM/H7, H8/H9/H11/H16(JP), 9005, 9012, D2/D4
Working temperature -40℃~+80℃
Power efficiency >87%
Beam angle 270°
Color temperature 6500K
CANBUS CANBUS inside
Cooling type Aluminum radiator
Temperature control Intelligent temperature control IC (built-in driver)
Adapter 360°adjustable
Life span 30000+ hours
Lighting pattern Low beam / High beam

Brand new design:

Triangle patent design, for both of reflector & projector / LENS; Copper PCB; Red copper heat conduct board; Double rubber rings for 360°adjustable adapter.

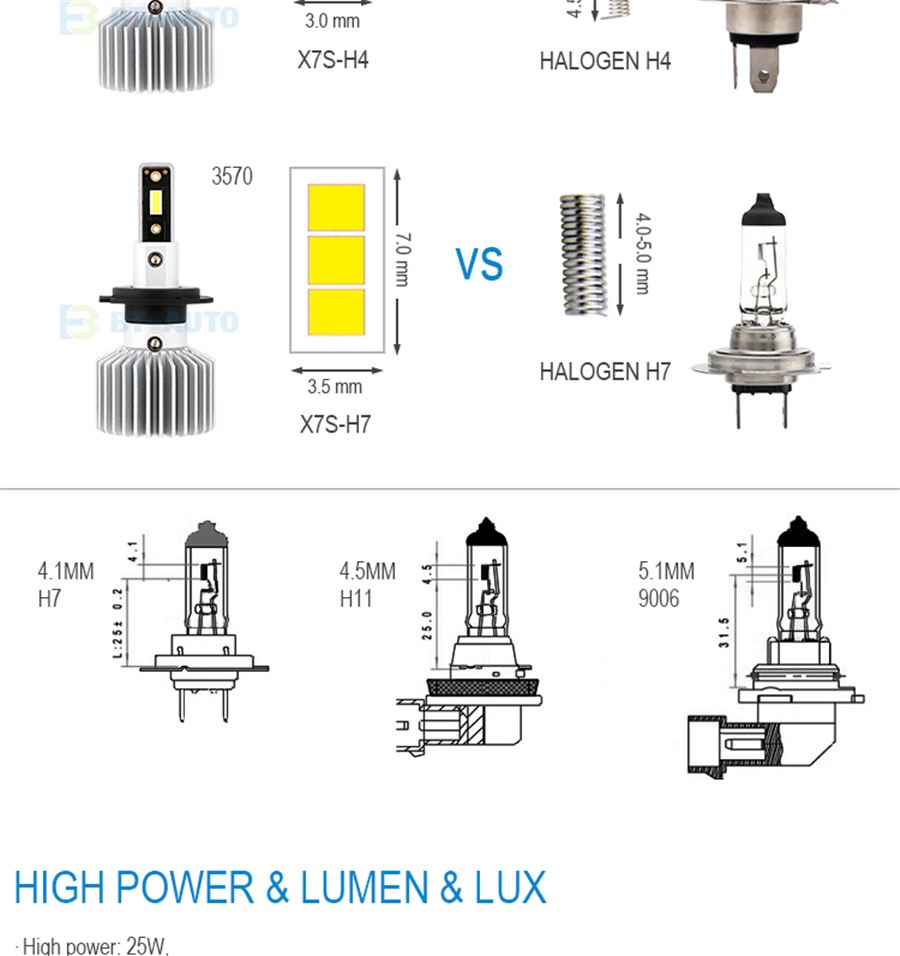

5530 / 3570 customized LED module chip:

Similar size as halogen filament, standard lighting pattern; 3570 LED: H7, H8/H11/H16(JP), 9005, 9006, 9012, D2/D4; 5530: H1, h4.



High Power & Lumen & LUX:

High power: 25W,

High lumen: 1800LM/H1, 1400LM(low),1900LM(high)/H4, 2500LM/H7, H8/H9/H11/H16(JP), 9005, 9006, 9012, D2/D4,

High lux: 3-4 times than halogen.



Good Lighting Pattern:

For reflector headlight: good high beam; For projector/LENS headlight: no dark area for low beam.



Efficient heat conduction & dissipation system:

Copper PCB for better heat conduction than aluminum; Red copper heat conduct board for strengthening heat conduction from PCB to aluminum body; Aluminum radiator for cooling.

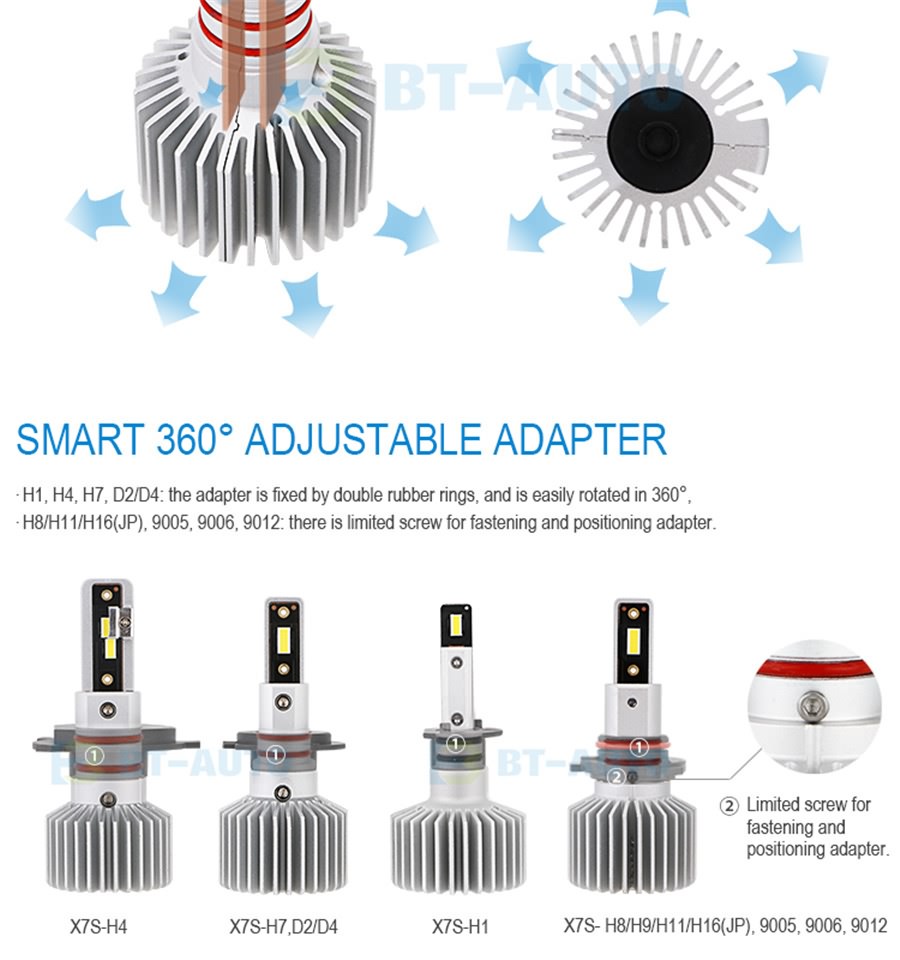

Smart 360°adjustable adapter:

H1, H4, H7, D2/D4 LED headlight: the adapter is fixed by double rubber rings, and is easily rotated in 360°,

H8/H9/H11/H16(JP), 9005, 9006, 9012 LED Headight: there is limited screw for fastening and positioning adapter.



Small size driver:

Voltage input: DC 9-30V; CANBUS built-in: solving most canbus problems; Intelligent temperature control IC built-in: the current will drop gradually when the intelligent Temperature Control; IC(built-in base) reaches 120°C; Non-polarity; No electromagnetic interference; Size: 52.5*26*16mm; Laser logo is accepted.



Thin top body & Small base:

Diameter Φ13.5mm of H7, fitting for more vehicles; Diameter Φ8.5mm of H1, fitting for more vehicles; Diameter Φ36mm of base, fitting for more vehicles.

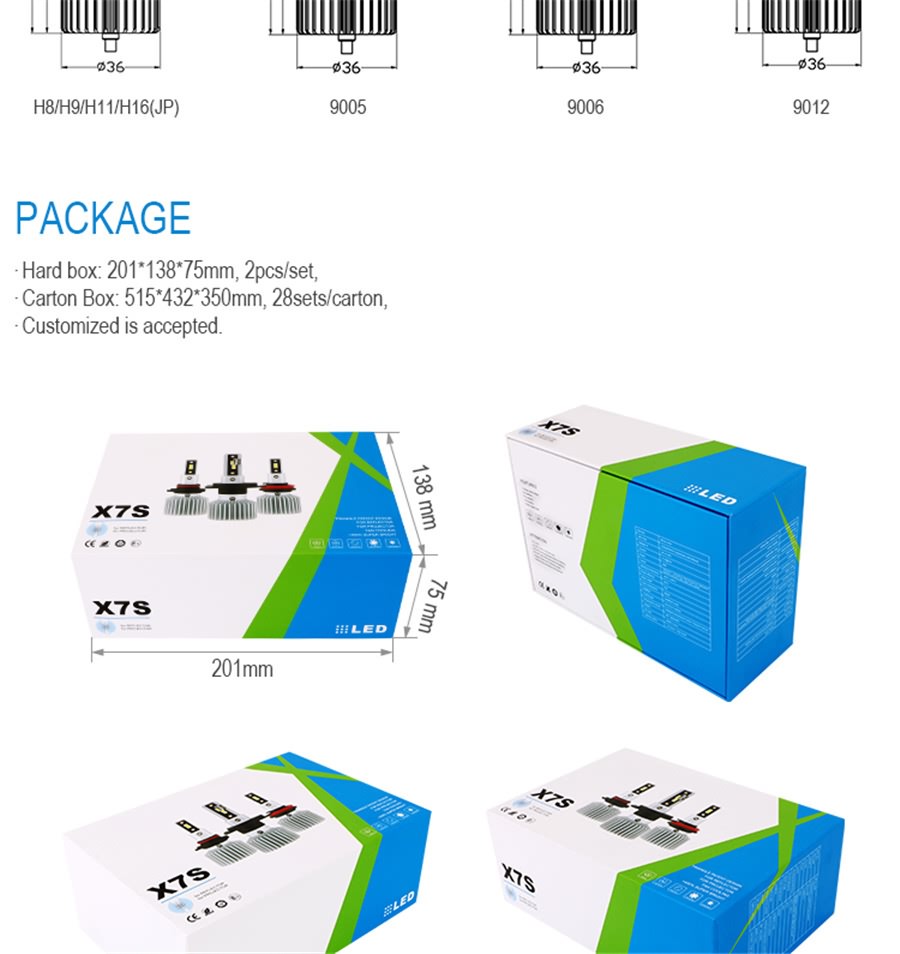

Soft box: 201*138*75mm, 2pcs/set; Carton box: 52*44*35 cm, 28sets/carton; Customized is accepted.

Welcome OEM and ODM for all BT-AUTO LED Headlight.

20191020-X7S (1) 20191020-X7S (2) 20191020-X7S (3) 20191020-X7S (5) 20191020-X7S (4) 20191020-X7S (6) 20191020-X7S (10) 20191020-X7S (7) 20191020-X7S (9) 20191020-X7S (8) 20191020-X7S (12) 20191020-X7S (11) 20191020-X7S (13) 20191020-X7S (14)
