BT-AUTO CSP-3 High Power Super Bright Car LED Signal Turning Light Bulb T15 Reversing bulb T20 S25 LED Brake Lamp

Short Description:

We are selling BT-AUTO CSP-3 High Power Super Bright Car LED Signal Turning Light Bulb T15 Reversing bulb T20 S25 LED Brake Lamp.

We have been specializing in international AUTO lighting markets for years. We have built constant business relationships with customers from many countries. We expecting become your long-term business partner in China.

Available models: T10, BA9S, T15/T16, T20(7440, 7443), T25(3156, 3157), S25(1156, 1157), FOG.

Current: 0.2A/T10,BA9S, 0.33A/T15,T16, 0.95A/T20,T25.S25,FOG

Voltage: 9-30V

Available color: white

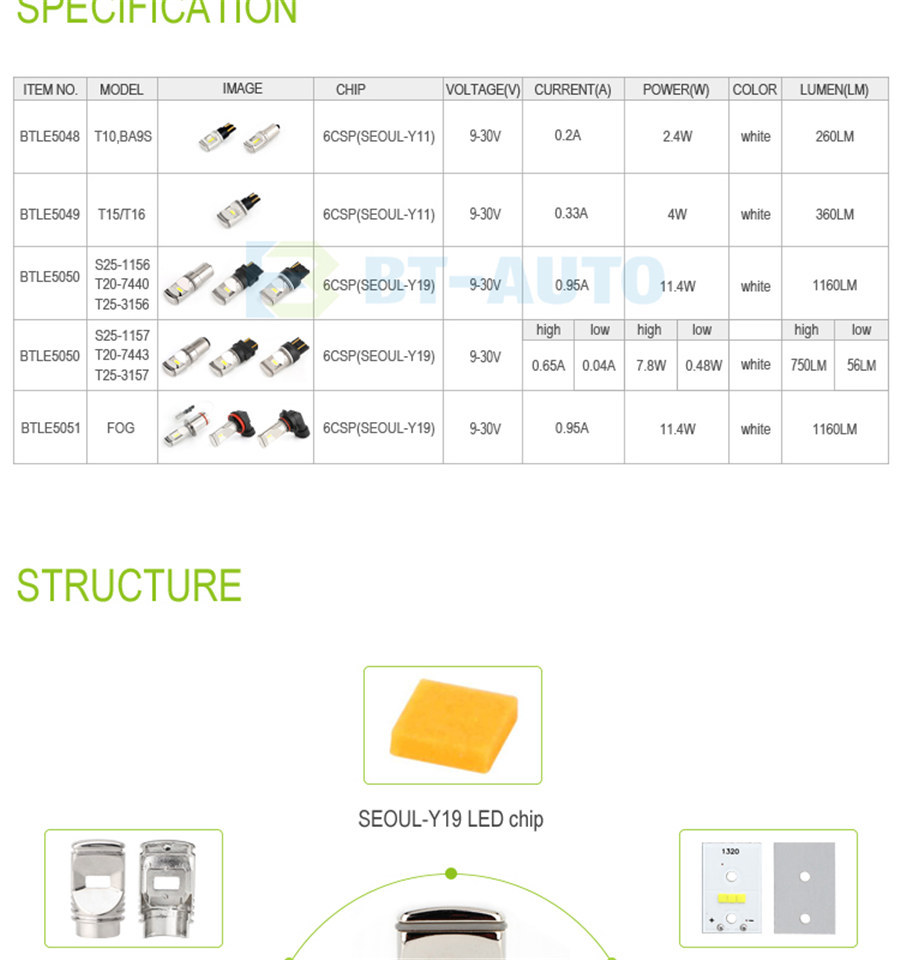

Product Detail

Type car led signal bulb
Current 0.2A/T10,BA9S, 0.33A/T15,T16, 0.95A/T20,T25.S25,FOG
Voltage 9-30V
PCB Superconducting Aluminum Substrate
Available color white
Beam angle 360 degree
Polarity Non-polarity
Life span 30000+ hours
Warranty 12 months
MOQ 50pcs
Certificate CE, RoHS
Function turning, reversing, braking, DRL FOG, light.
Car fitment universal, can use on cars like Toyota, Honda, Nissan, Mazda, KIA, Hyundai, BENS, BMW, Audi, Citroen, Peugeot, FORD, BUICK, Chevy, etc.

Structure:

SEOUL-Y19 LED chip; Aluminum heat sink body; Built-in intelligent driver; Aluminum double sides PCB; High quality socket.



SEOUL-Y19 LED chip:

SEOUL-Y11: 1.5W/pc, 140lm/W for T10, BA9S, T15/T16; SEOUL-Y19: 5.0W/pc, 160lm/W for T20(7440,7443), T25(3156,3157), S25(1156,1157), FOG.



Double sides aluminum PCB:

Thin PCB for better lighting pattern; High heat-conduction, much better than normal glass fiber board PCB; Good electrical insulation performance and high mechanical strength.



Aluminum Body:

Aviation level aluminum alloy; Precise CNC machining, excellent heat-conduction; Large heat sink surface area, superior cooling performance.



Driver:

Stable and efficient; Constant current; High quality SMD components.



Socket:

Original adapter, standard and small; High strength, high insulation, anti-corrosion; PIN is phosphor copper with gold plating, phosphor copper is good electric conduction and ductility; gold plating is anti-oxidant and elegant, wider and stronger PIN; Easy installation with the long wire cable; Plug and Play.



Lighting:

Available color: white; High lumen: 1160LM/white; Beam angle: 360°; Good lighting pattern.

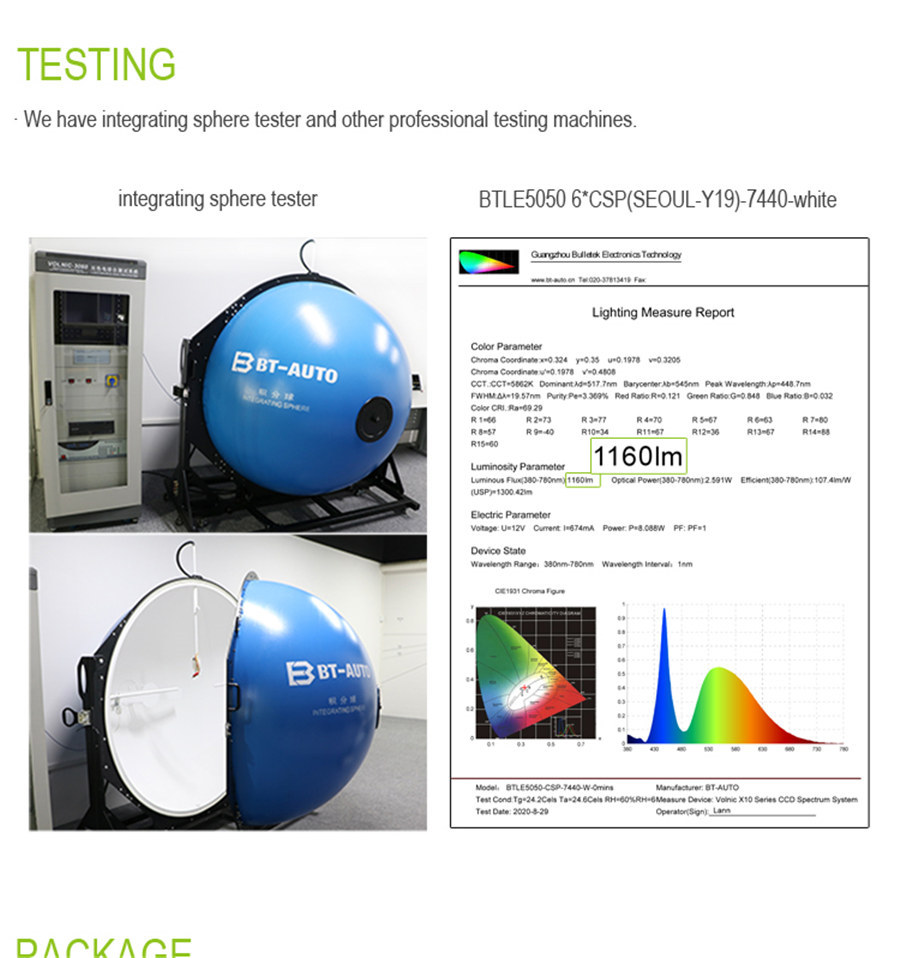

Testing:

We have integrating sphere tester and other professional testing machines; All products in the order will be tested before ship out.



Installation:

easy installing, plug and play, fits for almost all cars; CAN connect an extra resistor If have canbus problem, like error on dash board, fickler, etc.

Warranty: take video of the problem to replace new or refund.



Package:

Blister package: elegant, blister is sealed with high frequency plastic welding machine; Box package: supereme, high-end; Customized package is accepted.

csp (1) csp (2) csp (3) csp (4) csp (5) csp (6) csp (7) csp (8) csp (9) csp (10) csp (11) csp (12) csp (13) csp (14)
